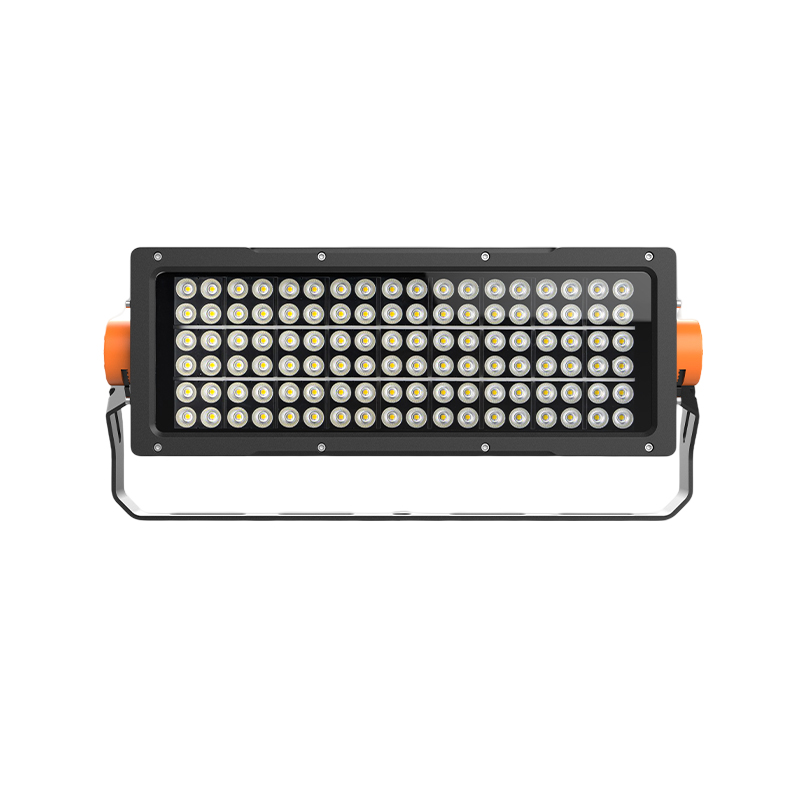

LED Stadium Light

HPG7001
HPG7001 Instruction Manual
LED stadium lights have super-high brightness, uniform and shadowless top-level lighting effects, combined with instant response and precise light control technology, to provide cinema-level visual assurance for events and create a zero-defect competitive stage.

Consult

Features Technical Indicators Overall Dimension

1. Anti-wind design.
2. ADC12 Diecasting aluminum body.
3. Independent modular angle adjustable.
4. Different beam angles.
5. Famous brand LED driver.
6. Thermal-Electrical divided structure.
7.Low glare UGR<18
Note：

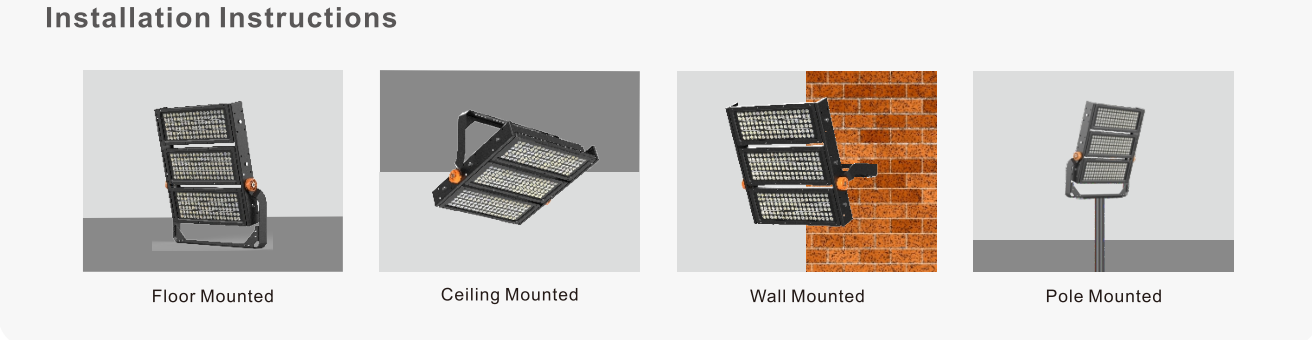

1. Installation must be done by professional electricians.
2. Do NOT take apart the product. It may be dangerous.
3. Do NOT stare at the light with naked eyes. It is harmful to eyes.
4. For outdoor lighting, waterproof measurements must be done to the cable terminals.
arranty：
1. All LED Flood Lights are warranted by the manufacturer to befree of defects in material and workmanship for 5 years.
2.Warranty becomes void if the products is modified, improperly installed orused, damaged by accident or neglect, or if any parts are
improperlyinstalled or replaced by the user.
3. During the period of warranty time, if some productsof us fails during normal circumstances and applications or have any defectsabove defined, we shall at our own choice replace or repair the defectiveproducts at no charge. And the liability claims would NOT exceed the valueof the product itself.

Model	HPG7001-250W(300W)		HPG7001-500W(600W)		HPG7001-750W(900W)		HPG7001-1000W(1200W)
Model	250W	300W	500W	600W	750W	900W	1000W	1200W

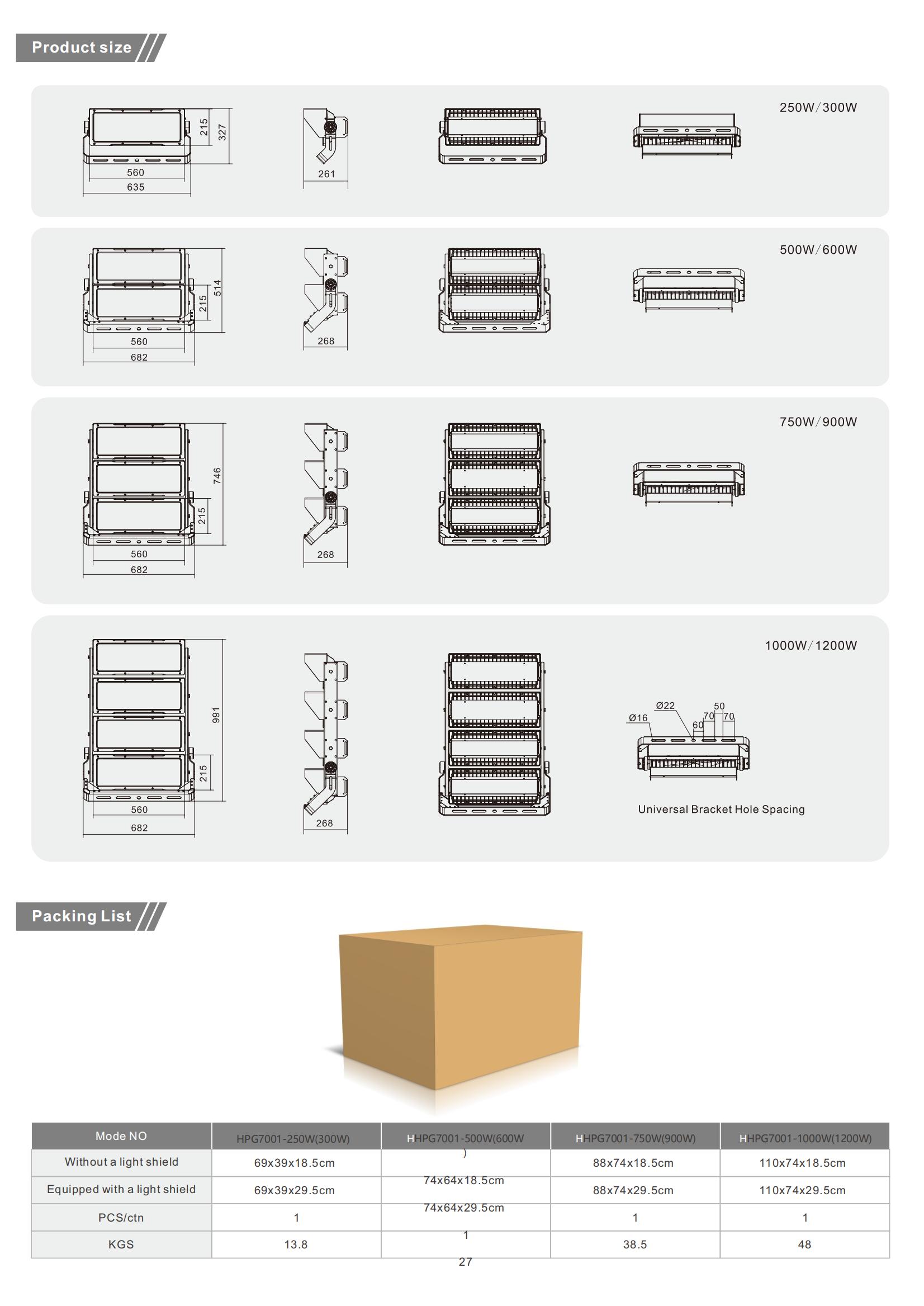

Size(mm)	635x327x261		682x514×268		682x746x268		682x991×268
Input Voltage	85-265 AC5060Hz
Material	Aluminum +PC
LED Driver	Mean well/Inventronics
Light Source	SMD 5050
CRI	>Ra80
Light Effciency	130/170LMW
Beam Angle(50%Imax.)	15°124°/36°/48°/60°/90°
IP code	IP66
Warranty period	3-5 years
