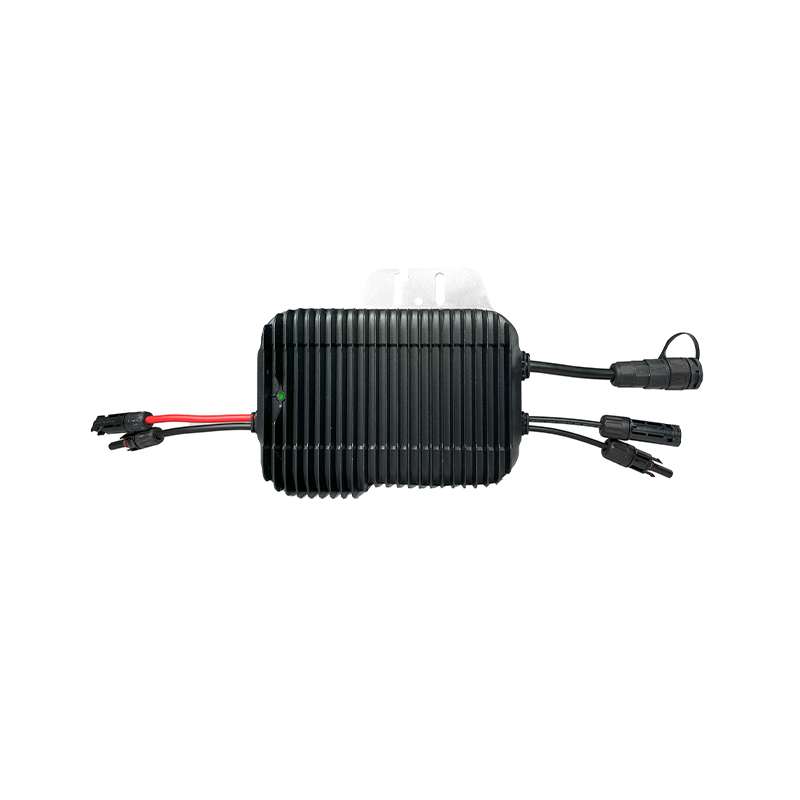

Solar Inverter HP-1000-1

Model

HP-1000-1

PV Input Data (DC)

Recommended Single PV Module Power (W)

270-550

Maximum Input Voltage (V)

60

Maximum Input Current (A)

20

Starting Voltage (V)

22

DC Connector Quantity

1

DC Connector Model

MC4

Output Parameters (AC)

Rated Output Power (VA)

1000

Maximum System Efficiency

94%

Rated Output Current (A)

4.35

Rated Output Voltage (V)

230

AC Working Voltage Range (V)

230 0.85Un-11Un

Rated Output Frequency (Hz)

50

Allowed Frequency Range (Hz)

47-53

Voltage Total Harmonic Distortion Rate

<3%

AC Connection Method

Single Phase

Standby Power Consumption (W)

<17

Inverter protection function

DC Over and Under Voltage Protection

Yes

Over Pemperature Protection

Yes

DC Reverse Polarity Protection

Yes

Surge Protection

Yes

AC Overcurrent Protection

Yes

AC Over and Under Voltage Protection

Yes

Photovoltaic Input

MPPT Quantity

1

MPPT Efficiency

99.50%

Maximum Short Circurt Current (A)

25

Reference Battery Specification 1

Battery Type

Lithium battery and Lead-acid

Rated Battery Voltage (V)

48

Battery Voltage Range(V)

45~58

Floating Charge Voltage(V)

54

Overcharge Protection(V)

61

Maximum Charging Rate(C)

1

Maximum Discharge Rate(C)

1

Battery Charging Strategy

Adaptive BMS

Charging Curve

Float charge

External Temperature Sensor

Optional

Recommended Battery Capacity(Wh)

2000-2500

Institutional Parameters

Ingress Protection

IP67

Product Size(mm)

239.8*207.9*58.1

Product Weight (Kg)

2.8

Communication Method

Communication Method (Optional)

-

Working Environment

Cooling Method

Natural Convection

Working Temperature (C)

-40~+65

Certification

Certification Standards IEC 62109-1,IEC 62109-2,EN 60529,EN 61000-6-3/-1,2011/65/EU82015/863/EU

1* This product does not come with a battery. The battery specifications are for reference only and customers need to purchase them by themselves.
