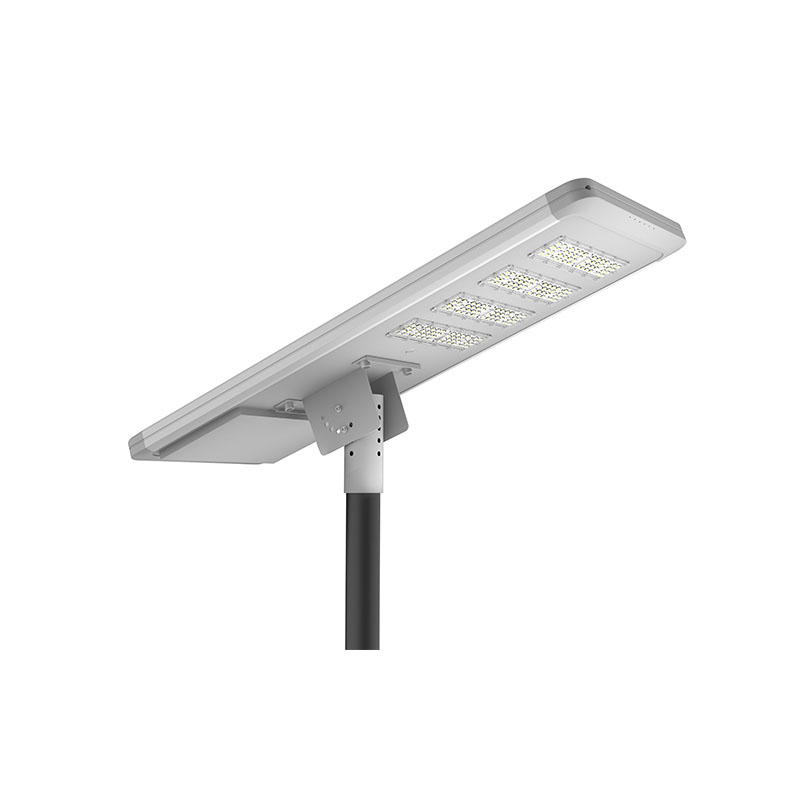

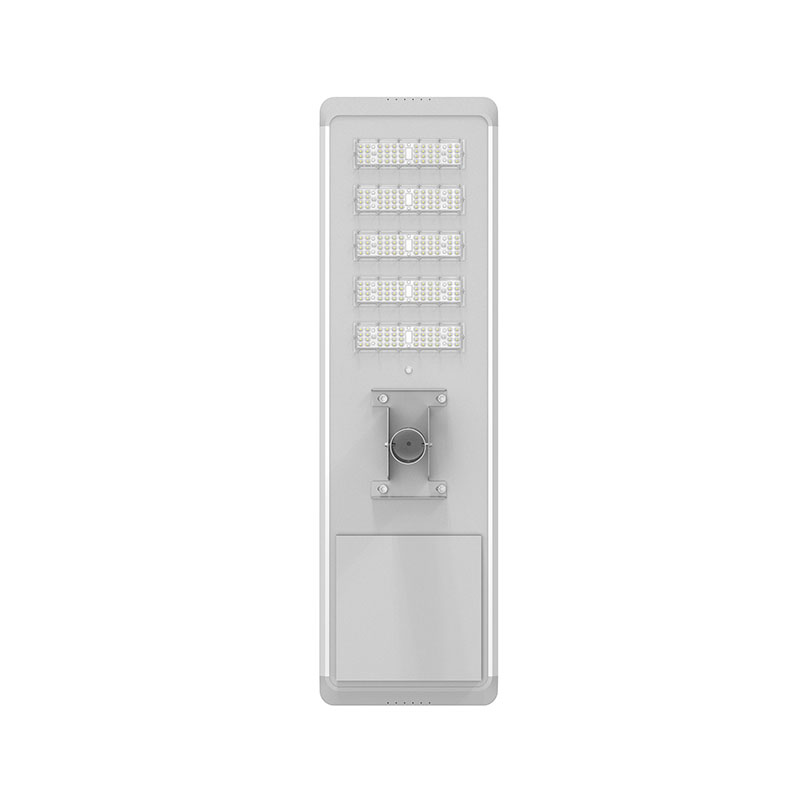

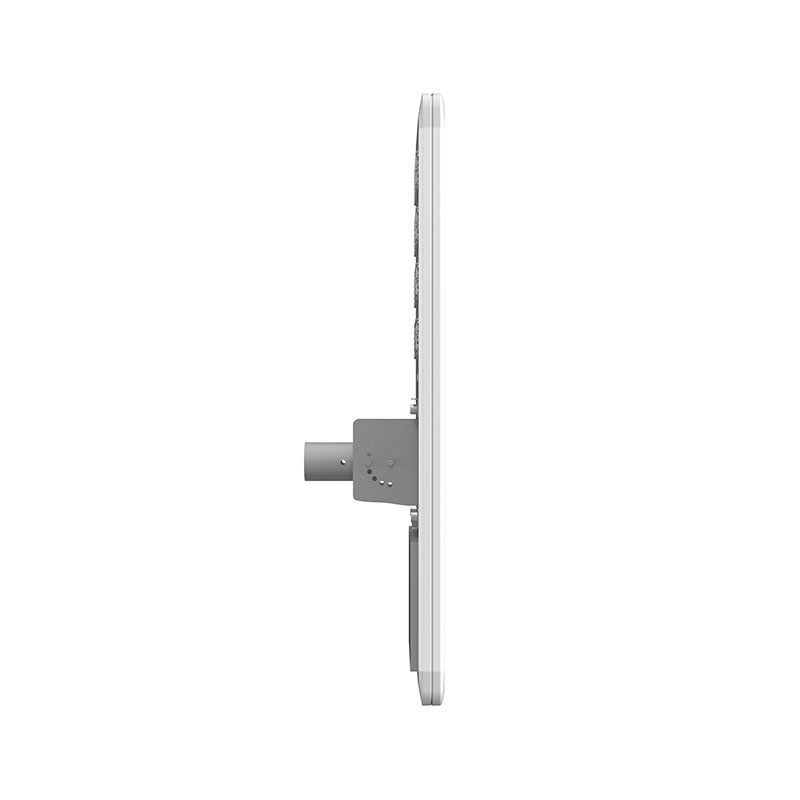

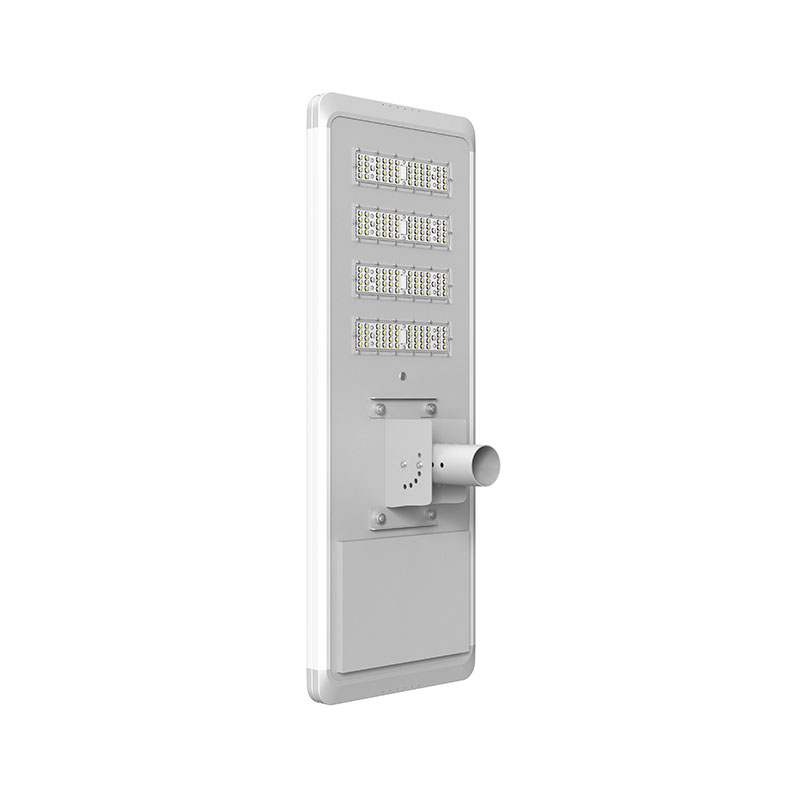

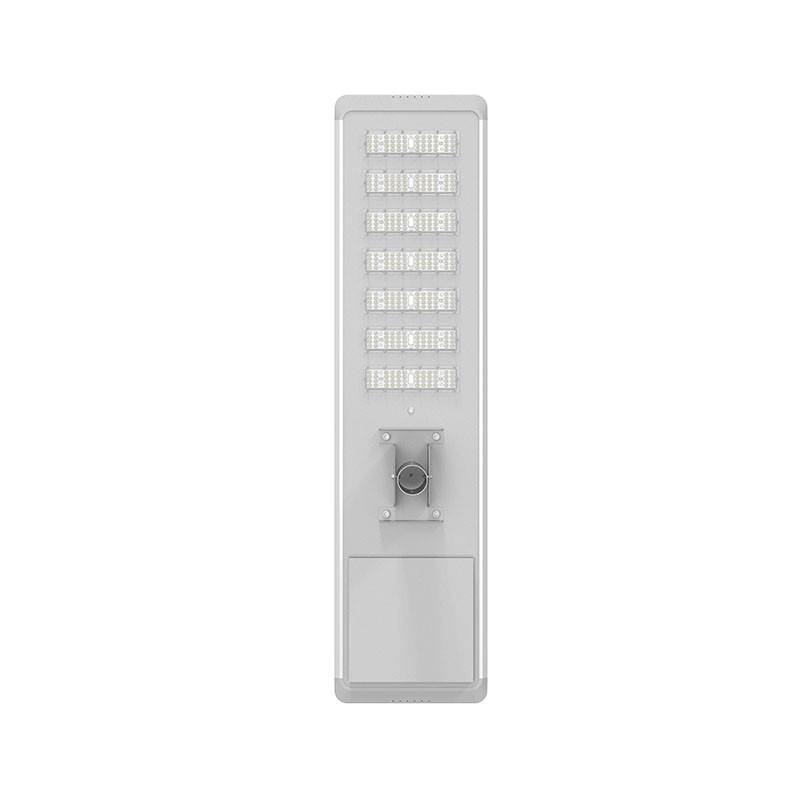

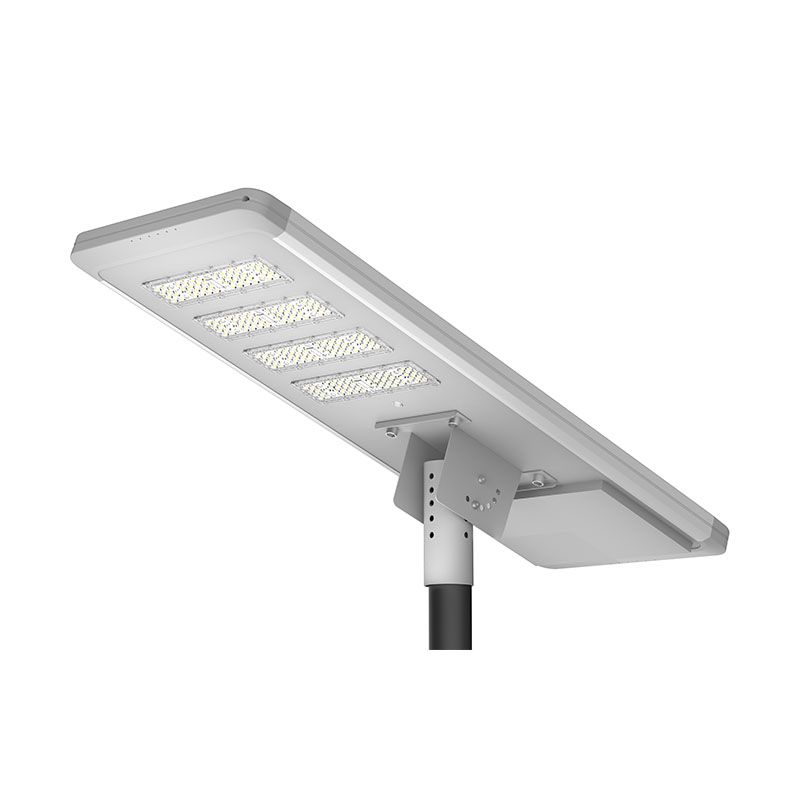

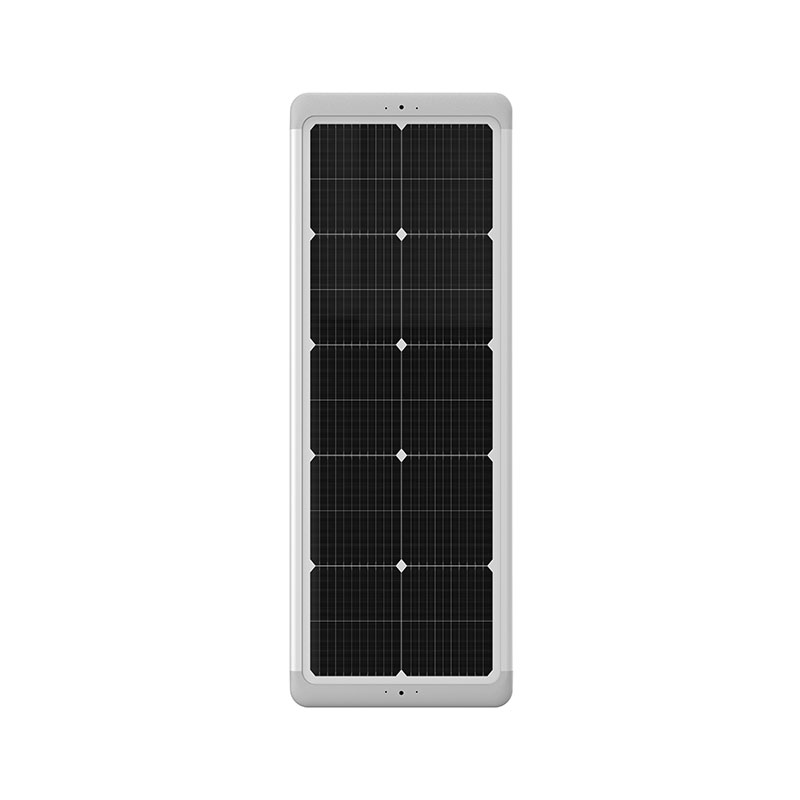

Solar Street Lights FA

FA
This product is a new integrated solar street lamp patented by our company, which is designed to provide userswith high-quality outdoor lighting solutions. It has passed many international certifications such as CE and RoHS, andhas the advantages of no wiring, convenient installation, high charging efficiency, long battery life and outstandinglight efficiency. Built-in large-capacity lithium battery can efficiently convert and store electric energy through solarpanels to provide continuous lighting. Suitable for courtyards, parks, communities, rural roads, urban sidewalks,highways and other scenes, it can meet the lighting needs of different environments and provide safe and environmentally friendly green lighting support for outdoor activities.

Consult

Features Technical Indicators Overall Dimension

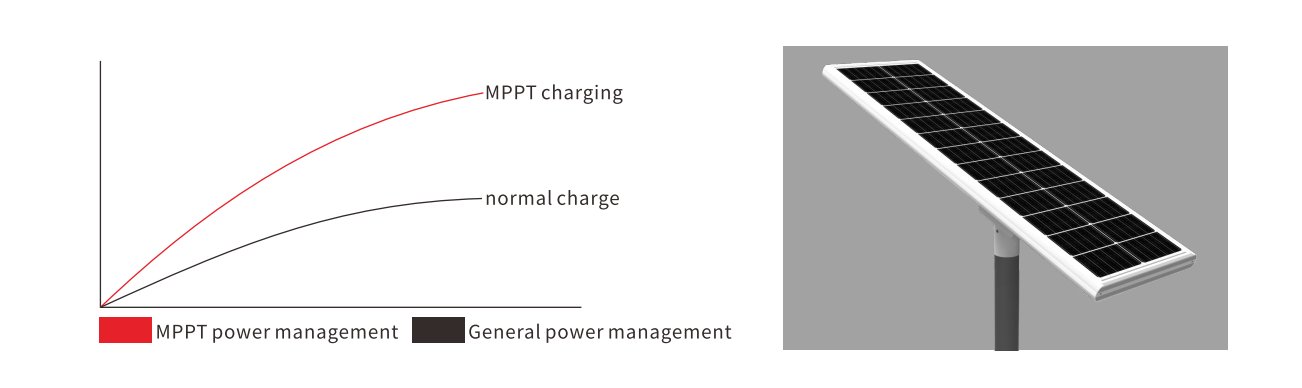

1.MPPT charging increases charging efficiency by 20%
The conversion efficiency of monocrystalline photovoltaic panels is relatively high, usually reaching over 24%and up to 26%. The conversion efficiency of polycrystalline photovoltaic panels is relatively low, usually around 17%.The crystal structure of single crystal photovoltaic panels is relatively orderly, with high thermal shock resistance,and can work for a long time in high temperature environments without significant performance degradation.PolycrystallinePhotovoltaic panels are prone to structural changes in grain size under high temperature conditions,leading to performance degradation.

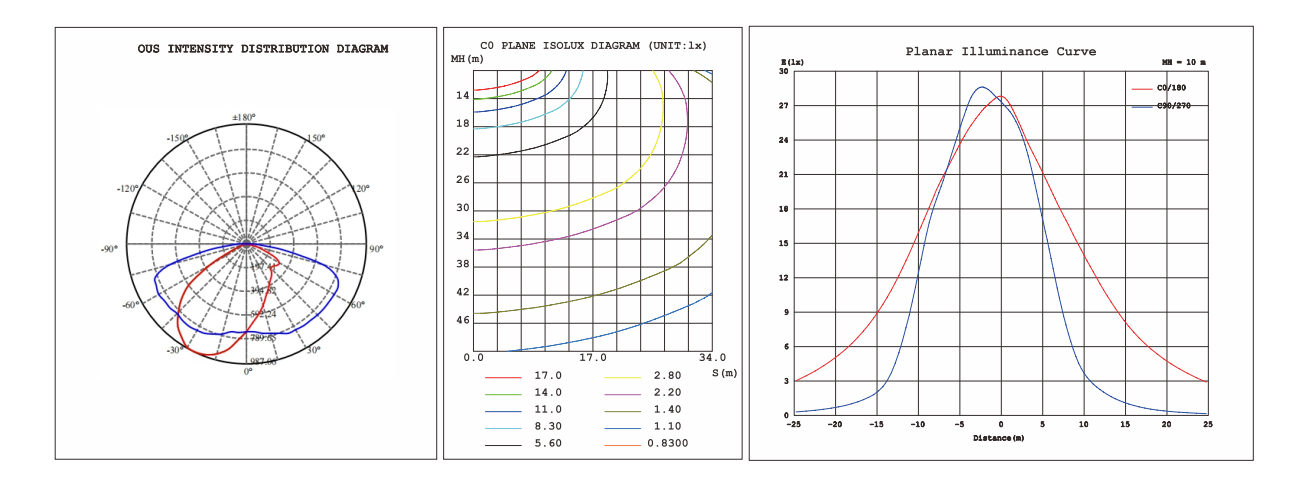

2. Increase the central illumination and expand the coverage of illumination
Through scientific optical design and innovative three lens structure, not only has the central illumination beenimproved, but the illumination coverage has also been expanded. Through professional optical design, we haveadoptedThe 80* 170° opticallens has a 25% larger illuminated surface area than the traditional 120degree illumination angle when installed at the same height.

3.Intelligent power management system, automatic power distribution at night
Committed to meeting customers' demand for "365 days, dawn", our company's intelligent power managementsystem not only has higher charging efficiency, but also actively identifies the dayThe charging capacity can beadjusted independently to achieve better results on rainy days.

Mode	HY-FA-4M	HY-FA-5M	HY-FA-6M	HY-FA-7M	HY-FA-8M
Lamp body sizel	1184x430x50mm	1464x430x50mm	1524x430x50mm	1709x430x50mm	2104x430x50mm
LED source	3030	3030	3030	3030	3030
Single LED	1W	1W	1W	1W	1W
LED source quantity	120pcs	150pcs	180pcs	210pcs	240pcs
Luminous efficiency	200lm/W	200lm/W	200Im/W	200lm/W	200lm/W
solar panel	18V-80W	18V-100W	18V-120W	18V-140W	18V-150W
battery	3.2V 52AH	3.2V75AH	3.2V 90AH	3.2V 150AH	12.8V60AH
Light source voltage	30V	30V	30V	30V	30V
suitable	6-7m	7-8m	8-10m	11m	12m
mlighting Time	12h 3-5 rainy days	12h 3-5 rainy days	12h 3-5 rainy days	12h 3-5 rainy days	12h 3-5 rainy days
warranty	3years	3years	3years	3years	3years
